Battery Welding Machine

Pneumatic Spot Welding Machine with Built-in Air Compressor HT-SW03A

This pneumatic spot welder is equipped with laser alignment and positioning as well as welding needle lighting device, which can easily improve the accuracy of welding and production efficiency. The pressing and reset speed of the pneumatic spot welding head are independently adjustable, and the adjustment is convenient. The circuit of the pneumatic spot welding head adopts gold-plated contacts, and with digital display screen to display the spot welding voltage and current, which is convenient for observation.

It’s also quipped with an intelligent cooling system to adapt to long-term uninterrupted spot welding operations.


  • :
  • Product Detail

    Product Tags

    Specifications:

    Transformer Welder HT-SW03A

    Product Information

    Brand Name: HeltecBMS
    Applicable Industries: Machinery Repair Shops/Home Use/Retail/DIY
    Certification: CE/WEEE
    Origin: Mainland China
    Warranty: One year
    MOQ: 1 pc
    Application:
    • Spot welding of Lithium iron phosphate battery, Ternary lithium battery, nickel steel.l Assemble or repair battery packs and portable sources.
    • Production of small battery packs for mobile electronic devices.
    • Welding of lithium polymer battery, cell phone battery and protective circuit board.
    • Spot welding leaders to different metal projects, such as iron stainless steel brass nickel, molybdenum and titanium.



    Customization

    • Customized logo
    • Customized packaging
    • Graphic customization

    Package

    1.  Battery welding machine *1set (accessories available).
    2. Anti-static bag, anti-static sponge and corrugated case.

    pneumatic-welder-HT-SW03A-packing-list

    Purchase Details

    • Shipping From:
      1. Company/Factory in China
      2. Warehouses in United States/Poland/Russia/Brazil
      Contact Us to negotiate shipping details
    • Payment: TT is recommended
    • Returns & Refunds: Eligible for returns and refunds

    Advantages:

    • Discharge balance, no risk of overloading.
    • Fast and simultaneously balancing.
    • Constant resistance 1 ohm discharge balancing.

    Features:

    • Pneumatic spot welding:
    • The pneumatic spot welding head adopts a buffer design, the pressure of the two welding needles is independently adjustable, and the adjustment is convenient. When the left and right electrodes are not at the same height or there is a slight height difference between the left and right sides of the battery, the force of the two electrodes is still balanced, and the welding quality will not be affected.

    • Built-in Compressed Air Pump:
    • Laser alignment positioning and solder pins, lighting device, spot welding position more professional, detailed and accurate.

    • Accurate microcomputer single-chip control:
    • It can realize single-pulse, double-pulse and multi-pulse welding.
      The microcomputer inside scans the input voltage at high speed for a long time, and when the current fluctuates, the compensation data will be calculated immediately, and the welding energy will be changed, no false welding or fire explosion will occur due to voltage fluctuation, and the welding effect is consistent each time. The welding spark is small, which has little impact on the battery.

    • Large LCD display:
    • Graphical display of the current working status.

    • Automatic counting function:
    • Single-day output can be automatically counted from 0000-9999, which is convenient to calculate single-day output and improve work efficiency.

    Technical Parameters

    Model SW03A Power Frequency 50Hz/60Hz
    Pulse Power 6KW Power Supply AC110V or 220V
    Spot Welding Output Voltage AC 6V Output Current 100~1200A
    Duty Cycle 55% Operating Air Pressure 0.35~0.55MPa
    Downward Pressure of Electrode 1.5KG(single) Electrode Stroke 24mm
    Arm Length of Welding Electrode 146mm Number of Pulses 01-05
    Pre-welding Energy Grade 01-99 Continuous Welding Current Grade 01-99
    Dimension(cm) 50.5*19*34 Net Weight 19.8kg

    * We keep upgrading products to meet requirements of our clients, please contact our sales person for more accurate details.

    pneumatic-welder-HT-SW03A-details-1
    pneumatic-welder-HT-SW03A-details-2

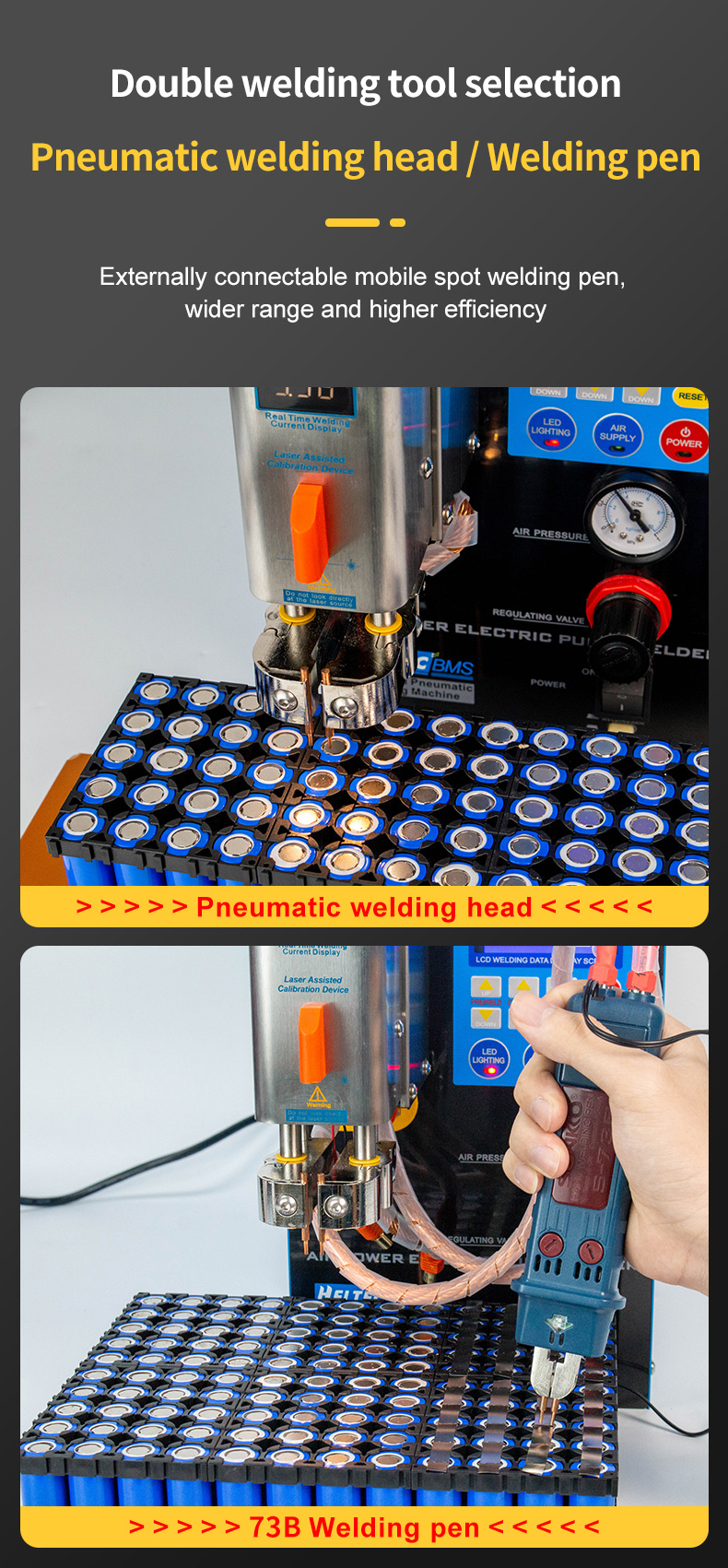

    pneumatic-welder-HT-SW03A-details-3
    pneumatic-welder-HT-SW03A-details-5
    pneumatic-welder-HT-SW03A-details-5
    pneumatic-welder-HT-SW03A-details-6
    pneumatic-welder-HT-SW03A-details-7
    微信图片_20230920153509
    Pneumatic Spot Welding Machine with Built-in Air Compressor
