Lithium Battery Charge Discharge Tester Lithium Battery Balancing Machine Equalizer Car Battery

This Lithium Battery Charge/Discharge & Equalization Repair Instrument – HT-ED50AC8 features a dedicated processor that ensures precise capacity calculation, timing, voltage and current control for comprehensive battery testing.

This Lithium Battery Charge/Discharge & Equalization Repair Instrument has a full-channel isolation test function and can directly test the cells in the entire battery pack. It adopts a single-channel 5V/50A charge and discharge power supply, has strong versatility, and is compatible with various types of batteries such as lithium iron phosphate, ternary lithium, lithium cobalt oxide, nickel metal hydride, and nickel cadmium.

For more information, send us inquiry and get your free quote today!

Send email to us Online Store

Product Detail

Product Tags

Specifications:

HT-ED50AC8 (8 channels 50A) Lithium Battery Charge/Discharge & Equalization Repair Instrument

(For more specifications, please contact us. )

Product Information

Brand Name:	Heltec Energy
Origin:	Mainland China
Warranty:	One year
MOQ:	1 pc
Battery Type:	18650, 26650 LiFePO4, No.5 Ni-MH batteries, pouch batteries, prismatic batteries, single large batteries and other battery connections.
Channels:	8 channels
Charge/Discharge current:	50A
Application:	Used for battery equalization and capacity (charge & discharge) test.

Features

Each channel is equipped with a dedicated processor to ensure that the capacity calculation, timing, voltage and current control are at a perfect level.
Full channel isolation test, can directly test the battery cells of the entire battery pack.
Single channel 5V/50A charging and discharging power
Fully compatible with lithium iron phosphate, ternary lithium, lithium cobalt oxide, nickel metal hydride, nickel cadmium and other types of batteries
18650, 26650, soft pack batteries, block batteries and other physical specifications of batteries are fully compatible and installed.
Independent heat source air duct, temperature-controlled speed-adjustable fan;
Battery test probe height is adjustable, and the scale scale is convenient for leveling;
Running detection status, grouping status, alarm status LED indication.
Computer online equipment testing, test settings and results are detailed and rich.

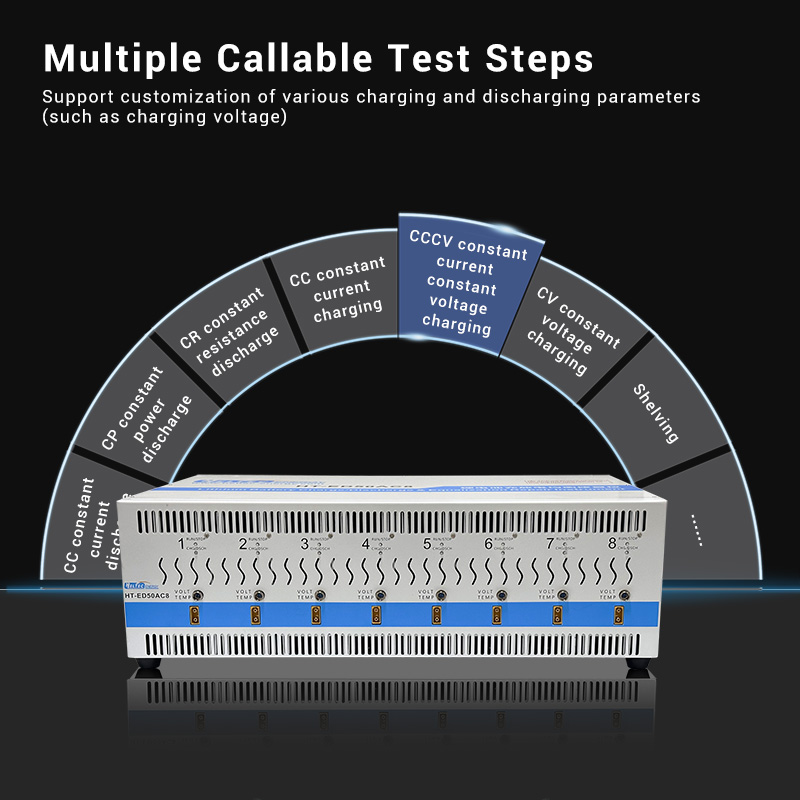

With CC constant current discharge, CP constant power discharge, CR constant resistance discharge, CC constant current charging, CV constant voltage charging, CCCV constant current constant voltage charging, shelving and other test steps available for call
Customizable charging or discharging parameters; such as charging voltage;
With step jump capability
Can realize group matching function, test results are grouped according to custom standards, and marked and displayed on the device;
With test process data recording function;

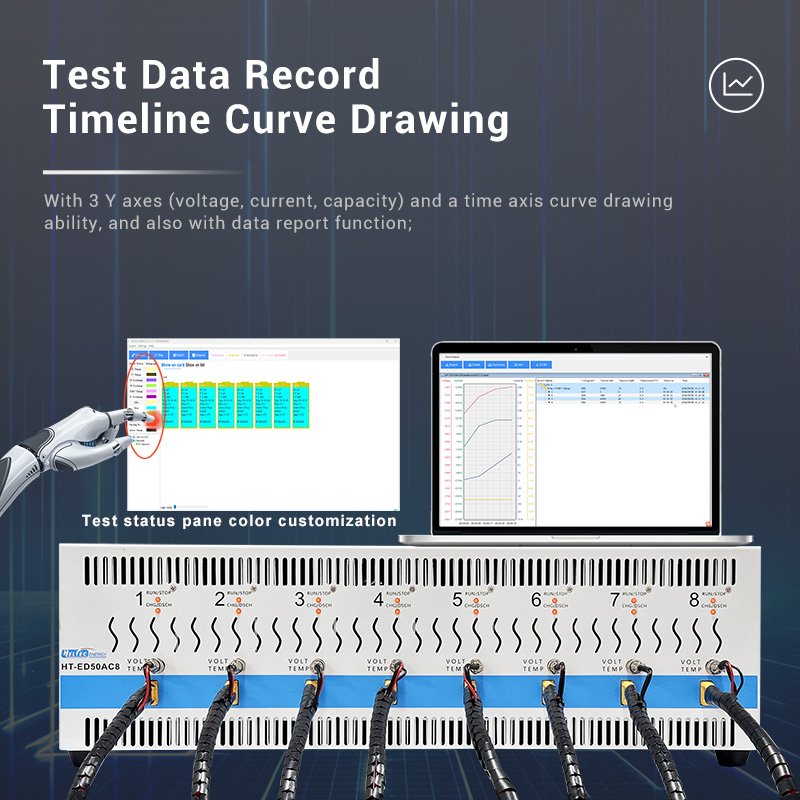

With 3 Y axes (voltage, current, capacity) and a time axis curve drawing ability, and also with data report function;
Test status pane color customization, when the number of tests is large, it is easy to visually check the detection status of all devices.

maintenance-battery-lithium-battery-equalizer-cell-capacity-tester (3)

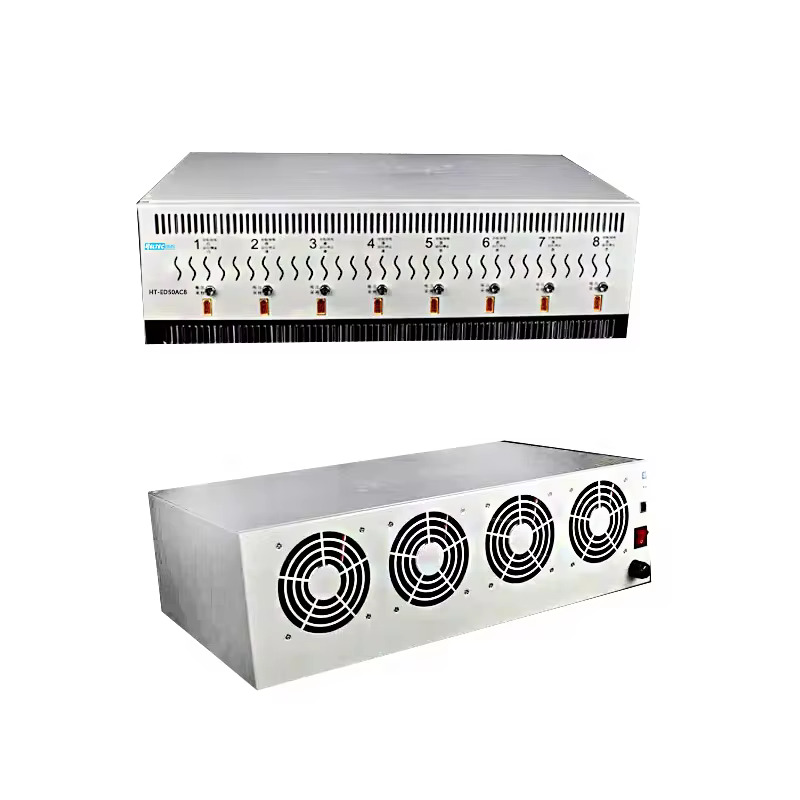

maintenance-battery-lithium-battery-equalizer-cell-capacity-tester (4)

Customization

Customized logo
Customized packaging
Graphic customization

Package

1. Lithium Battery Charge/Discharge & Equalization Repair Instrument *1set

2. Anti-static sponge, carton and wooden box.

Purchase Details

Shipping From:
1. Company/Factory in China
2. Warehouses in United States/Poland/Russia/Brazil/Spain
Contact Us to negotiate shipping details
Payment: TT is recommended
Returns & Refunds: Eligible for returns and refunds

Product Parameters Per Channel and Environmental Requirements

Input power	AC200V～245V @50HZ/60HZ 50A
Standby power	80W
Full load power	3200W
Allowable temperature and humidity	Ambient temperature <35 degrees; Humidity <90%
Number of channels	8 Channels
Inter-channel voltage resistance	AC1000V/2min without abnormality
Maximum charging current	50A
Maximum discharge current	50A
Maximum output voltage	5V
Minimum voltage	1V
Measurement voltage accuracy	±0.02V
Measuring current accuracy	±0.02A
Applicable systems and configurations of the upper computer software	Windows XP or above systems with network port configuration.

Battery Connection

Supported batteries：The Lithium Battery Charge/Discharge & Equalization Repair Instrument HT-ED50AC8 supports voltages within 5V and capacities of any size.

Physical specifications support: 18650, 26650 lithium iron phosphate, No. 5 nickel-metal hydride batteries, soft-pack batteries, block batteries, large monomers and other battery connections.

The minimum height of the probe can be adjusted to 32mm and the maximum height can be adjusted to 130mm.

After installing the battery, it is necessary to check whether the battery pole piece and the probe shell are in full contact. Only when the middle needle is in contact with the test will there be no current.

3.7V240mAH soft-pack battery 3.2V/10Ah lithium iron phosphate soft-pack battery Install the output line that is randomly distributed, and connect the battery with the alligator clip or flat clip according to the positive and negative poles.

Note: To ensure sampling accuracy, the output line is made with a four-wire sampling connection method. After the alligator clip or flat clip is connected to the battery pole, it is necessary to check whether the alligator clip or flat clip on the signal sampling side is in reliable contact.
