Battery Capacity Tester

Heltec Battery Health Checker 20 Channels Battery Aging Test Car Battery Tester

In modern battery applications, battery health management and repair are becoming more and more the focus of the industry. With the extension of battery life and the continuous development of technology, the battery may experience performance degradation and capacity reduction during use. Investing in battery testers to timely detect and repair batteries has become an important means to ensure battery reliability and extend service life.

In response to this demand, Heltec has launched a series of battery testing machine that can accurately evaluate various performance indicators of batteries. By testing key parameters such as battery voltage, capacity, and internal resistance, our testing instruments can help you quickly discover potential problems with the battery, and provide professional data support to guide subsequent repair and maintenance work.

For more information, send us inquiry and get your free quote today!


Product Detail

Product Tags

Specifications:

Our Battery Tester Available Models:

HT-ED10AC20 (20 channels Single Channel testing under 5V)

HT-ED50AC08 (8 channels Single Channel testing under 5V)

HT-ED10AC8V20 (8 channels Single Channel testing under 20V)

HT-ED10AC6V20D (6 channels Single Channel testing 7-23V)

(For more specifications, please contact us. )



Product Information

Brand Name: Heltec Energy
Origin: Mainland China
Warranty: One year
MOQ: 1 pc
Power Supply AC200V~245V @50HZ/60HZ
Channels
6 channels/8 channels/20 channels
Maximum Charging Current 6A/10A/50A
Maximum Discharging Current 10A/10A/50A
Application: Used for battery voltage, capacity and current testing

Please see the follow for detailed parameters of each battery tester

Customization

  • Customized logo
  • Customized packaging
  • Graphic customization

Package

1. Battery capacity tester *1 set

2. Battery Test Fixture * 1 set

3. Anti-static sponge, carton and wooden box.

HT-ED10AC20 (11)
微信图片_20240828104242
HT-ED10AC8V20 (1)

Purchase Details

  • Shipping From:
    1. Company/Factory in China
    2. Warehouses in United States/Poland/Russia/Brazil/Spain
    Contact Us to negotiate shipping details
  • Payment: TT is recommended
  • Returns & Refunds: Eligible for returns and refunds

Model Selection

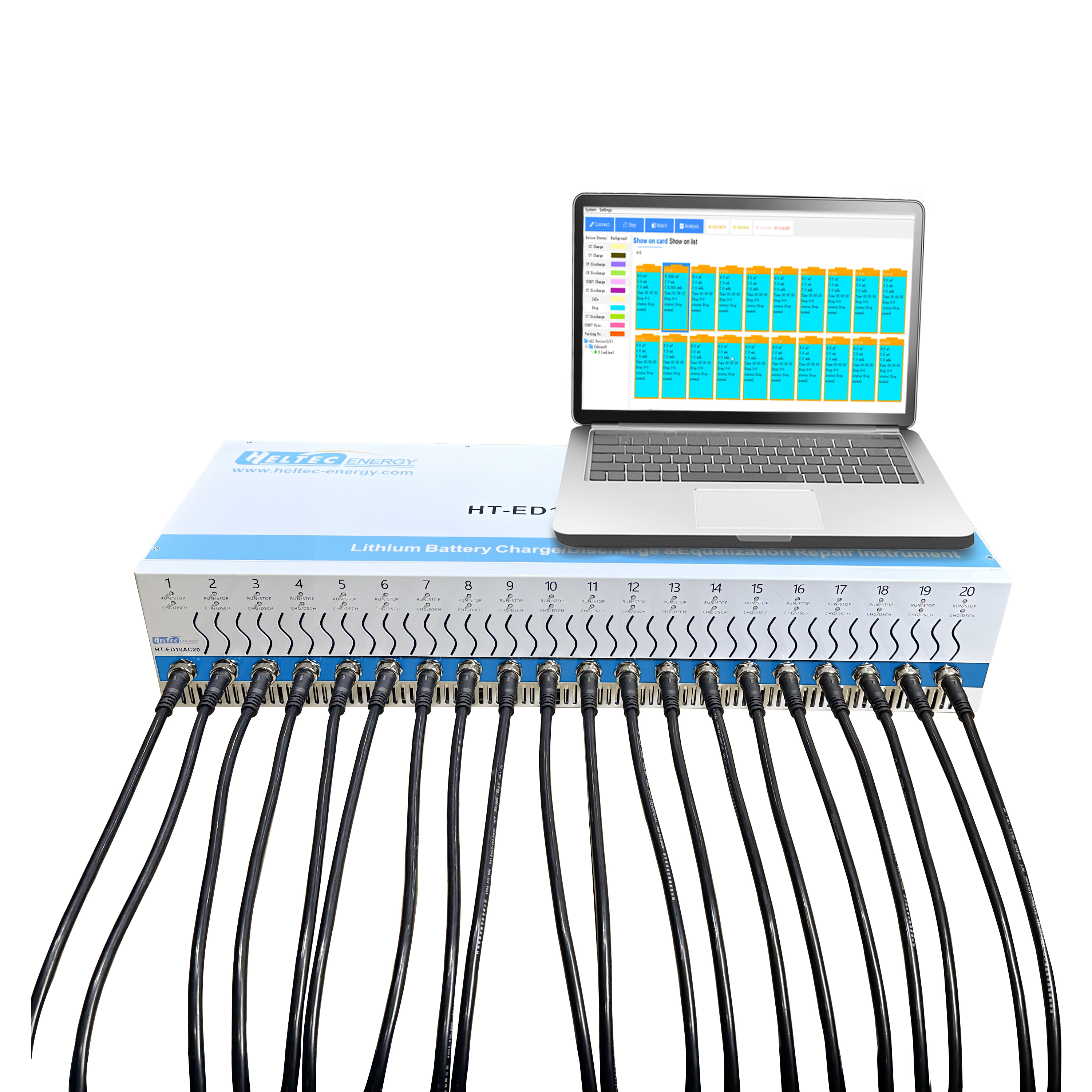

HT-ED10AC20



Single Channel under 5V

20 Channels Capacity Tester Charge/Discharge/Balance 10A

Fully compatible with lithium iron phosphate, lithium ternary, lithium cobaltate, NiMH, NiCd and other types of batteries

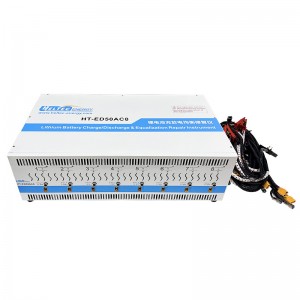

HT-ED50AC8



Single Channel under 5V

8 Channels Capacity Tester Charge/Discharge/Balance 50A

Fully compatible with lithium iron phosphate, ternary lithium, lithium cobalt oxide, nickel metal hydride, nickel cadmium and other types of batteries.

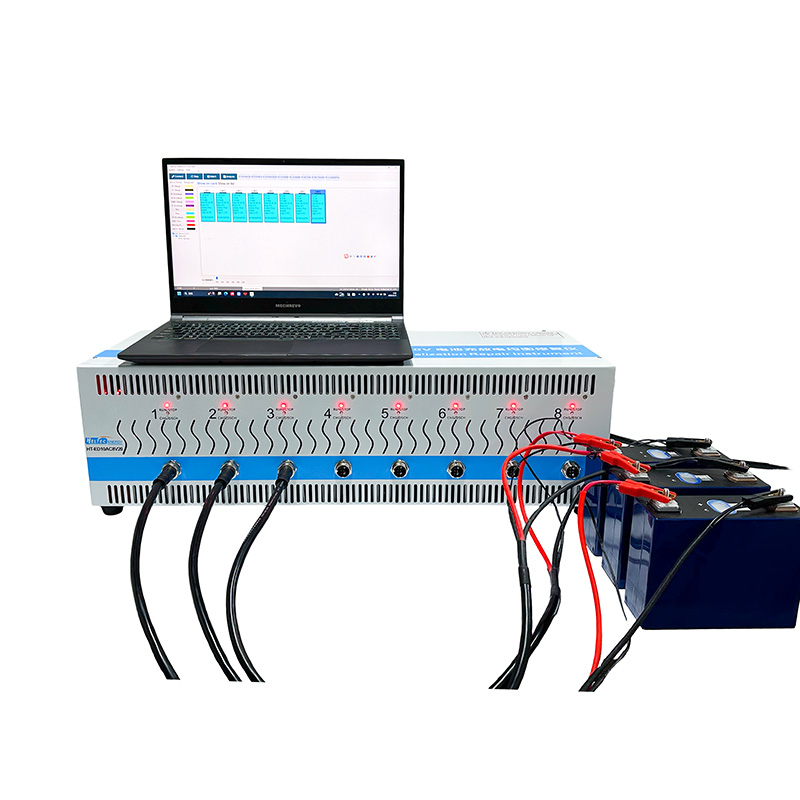

HT-ED10AC8V20



Single Channel under 20V

8 Channels Capacity Tester Charge/Discharge/Balance 10A

Fully compatible with lithium iron phosphate, ternary lithium, lithium cobalt oxide, nickel metal hydride, nickel cadmium, lead acid and other types of batteries

HT-ED10AC6V20D

Single Channel 7-23V

6 Channels Capacity Tester

Charge 6A

Discharge/Balance 10A

Fully compatible with lithium iron phosphate, ternary lithium, lithium cobalt oxide, nickel metal hydride, nickel cadmium, lead acid and other types of batteries.

Used for charging and discharging test and maintenance of electric vehicle batteries, energy storage batteries, solar cells, any battery of suitable voltage.

Product Parameters Comparison

Models HT-ED10AC20 HT-ED50AC8 HT-ED10AC8V20 HT-ED10AC6V20D 6
Number of channels 20 channels 8 channels 8 channels 8 channels
Max Charging Current 10A 50A 10A 6A
Max Disharging Current 10A 50A 10A 10A
Balance Function Yes Yes Yes Yes
Input power AC200V~245V 50HZ/60HZ
Standby power 80W 80W 80W 20W
Full load power 1650W 3200W 2400W 900W
Allowable temperature and humidity  Ambient temperature <35 degrees; humidity <90%.
Voltage range (signal channel) 1-5V0.1V adjustable 1-5V0.1V adjustable 1-20V0.1V adjustable 7-23V0.1V adjustable
PC Software Yes Yes Yes No(with Display)
Applicable systems and configurations of the upper computer software Windows XP or above systems with network port configuration Direct operation on the machine
Measurement voltage accuracy ±0.02V ±0.02V ±0.02V ±00.03V
Measuring current accuracy ±0.02A ±0.02A ±0.02A ±00.03A
Inter-channel voltage resistance AC1000V/2min without abnormality
