Battery Spot welder Matching Welding Head Improve welding efficiency HSW01 Integrated Column Pneumatic Pulse Welding Head

Are you tired of the inefficiency and inconsistency brought by manual welding? Experience the future of spot welding with the all-in-one column-type pneumatic pulse welder – a combination of efficiency and precision. The Heltec HSW01 pneumatic pulse welder says goodbye to cumbersome manual operations and seamlessly transitions from manual to pneumatic operation. The high-efficiency, high-reliability, and high-compatibility pneumatic flat welder adopts a unique buffer design, which can independently adjust the welding needle pressure, clamping speed, and reset speed. Used with our spot welders, it brings convenience and efficiency to welding work. The front pressure gauge and pressure adjustment knob provide real-time monitoring and easy adjustment to ensure consistent and precise welding results.

For more information, send us inquiry and get your free quote today!

Send email to us Online Store

Product Detail

Product Tags

Specifications:

HSW01 （Flat welding）pneumatic pulse welder

(For more specifications, please contact us. )

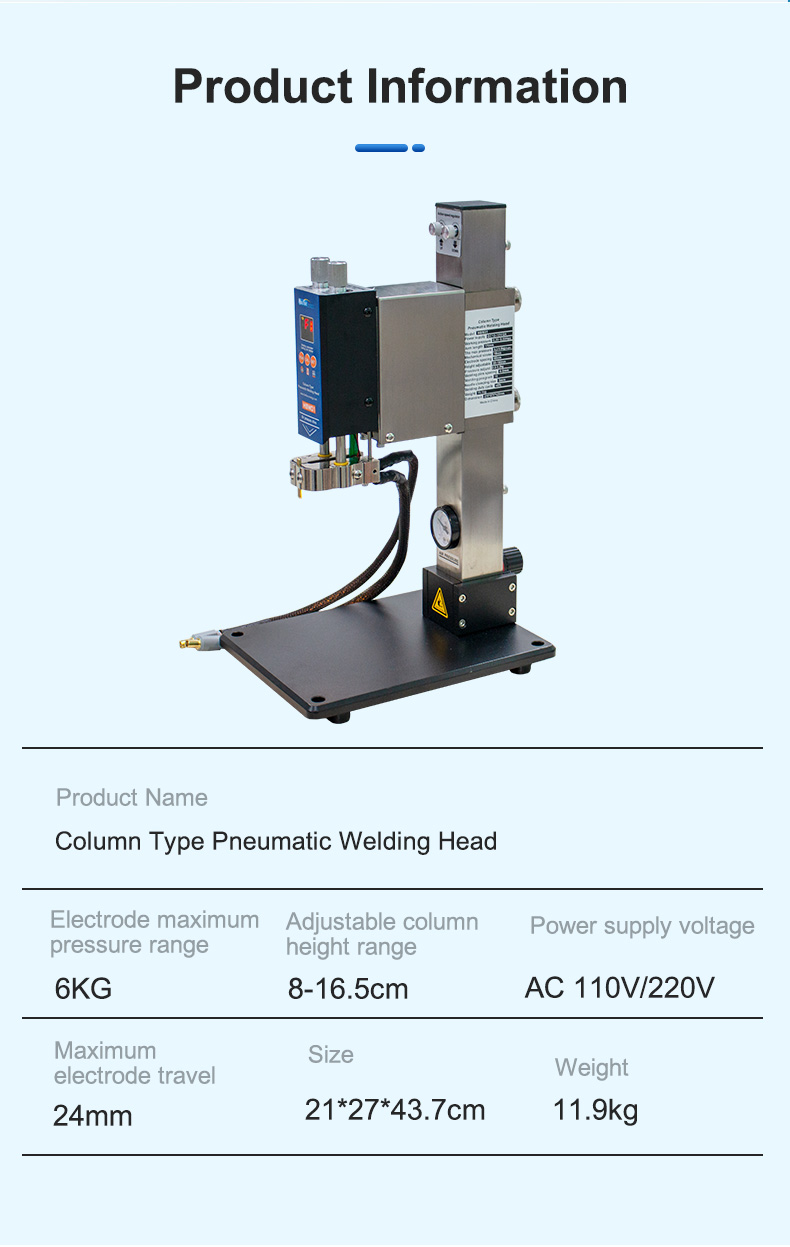

Product Information

Brand Name:	Heltec Energy
Origin:	Mainland China
Warranty:	One year
MOQ:	1 pc
Production	Column Type Pneumatic Butt Welding Head
Electrode maximum pressure range	6KG
Adjustable column height range	8-16.5cm
Power supply voltage	AC 110V/220V
Use	Use with Heltec spot welder and air compressor to improve work efficiency

Integrated-Column-Pneumatic-Pulse-Welding-Machine-battery-welder-spot-welding-machine (8)

Integrated-Column-Pneumatic-Pulse-Welding-Machine-battery-welder-spot-welding-machine (9)

Customization

Customized logo
Customized packaging
Graphic customization

Package

1. Pneumatic pulse welder *1 set

2. Power adapter

3. Foot control switch

4. Connecting the DC cable

5. Gold plated welding pin

6. Anti-static sponge, carton and wooden box.

Purchase Details

Shipping From:
1. Company/Factory in China
2. Warehouses in United States/Poland/Russia/Brazil/Spain
Contact Us to negotiate shipping details
Payment: TT is recommended
Returns & Refunds: Eligible for returns and refunds

Product Parameters

Power supply	DC 12-15V/2A	Working airpressure	0.35~0.55Mpa
Electrode arm length	170mm	Max electrode pressure	3.5-5.5kg(single)
Electrode pneumatic stroke	18mm	Adjustable electrode distance	95mm
Height adjustment range	90-190mm	Welding needle pressure adjustment range	2.2-3.2kg
Single welder pin spacing	24mm	Welding pneumatic program	10 piece
Welder pin clamping size	4-5mm	Welding duty cycle	45%
Weight	11.9kg	Size	210275425mm

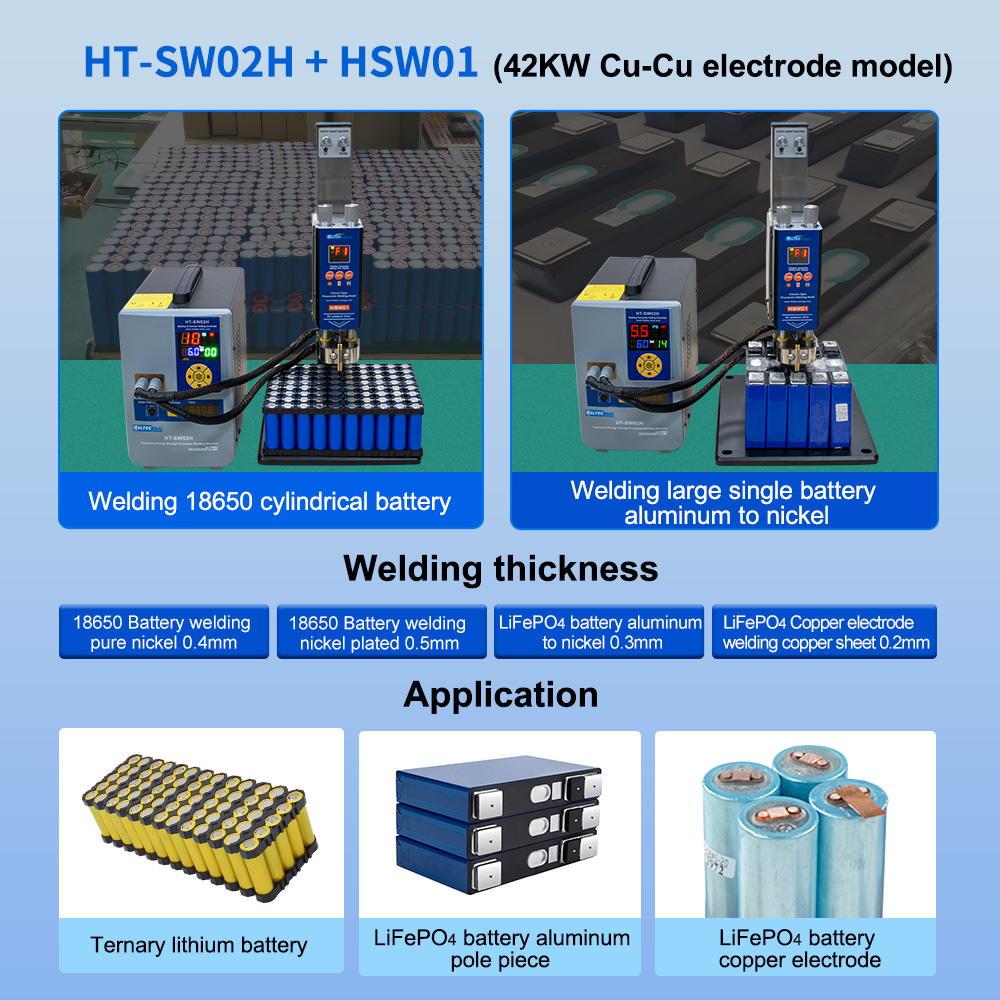

Applications

Ternary lithium battery

LiFePO4 battery

Welding hardware

Repair electric bicycles

Battery product processing factory

Integrated-Column-Pneumatic-Pulse-Welding-Machine-battery-welder-spot-welding-machine (2)

Integrated-Column-Pneumatic-Pulse-Welding-Machine-battery-welder-spot-welding-machine (3)

Features

1.Original integrated one-piece column pneumatic welding head,which can be used with_any machine model/output source.

2.The pneumatic spot welding head adopts a cushion design,the pressure of the welding needle is independently adjustable,and the downward pressure speed and reset speed of the pneumatic welding head are independently adjustable.

3.Original semi-automatic continuous spot welding function, which can be set to 1~9 times or N times of continuous welding.

4.The design of the front pressure gauge and pressure adjustment knob facilitates monitoring and efficient adjustment.

5.Equipped with intelligent heat dissipation and cooling system,suitable for long-term batch operations.

6.With the function of adjusting the welding head height,objects of different volumes can also be precisely welded.

7.Pioneering simulated welding calibration mode,zero current output simulates the welding process, reducing the cost of errors.
