Battery Internal Resistance Tester
Battery Internal Resistance Tester High Precision Measuring Instrument

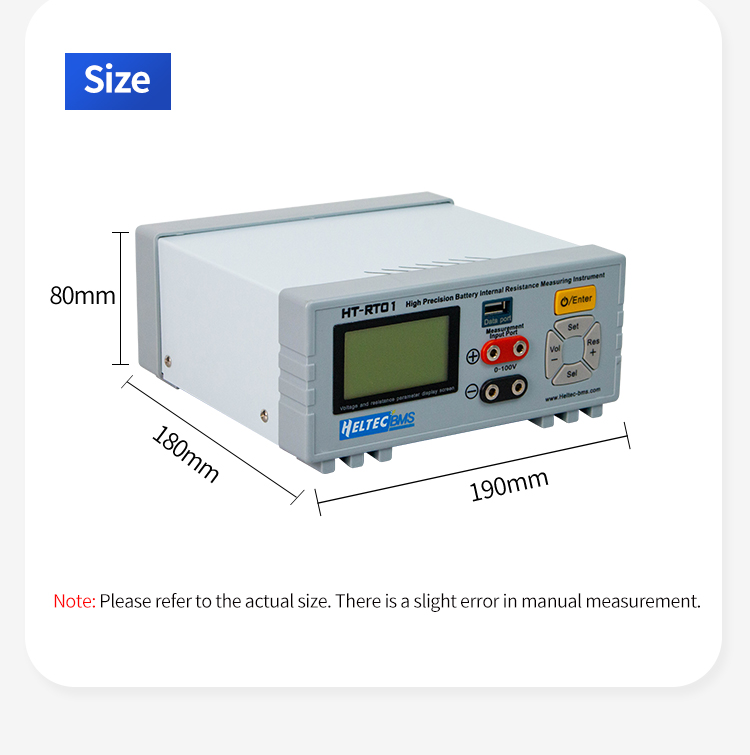

Specifications:
HT-RT01
Product Information
| Brand Name: | HeltecBMS |
| Certification: | WEEE |
| Origin: | Mainland China |
| MOQ: | 1 pc |
| Battery Type: | LFP, NMC, LTO, etc. |
Packing List
1. HT-RT01*1
2. LCR Kelvin 4-wire clamp*1
3. Test fixture*1
4. USB data cable*1
5. Power supply cord*1
6. Manual*1
Purchase Details
- Shipping From:
1. Company/Factory in China
2. Warehouses in United States/Poland/Russia/Spain/Brazil
Contact Us to negotiate shipping details - Payment: 100% TT is recommended
- Returns & Refunds: Eligible for returns and refunds
Features:
- Microchip Technology high-resolution 18-bit AD conversion chip to ensure accurate measurement;

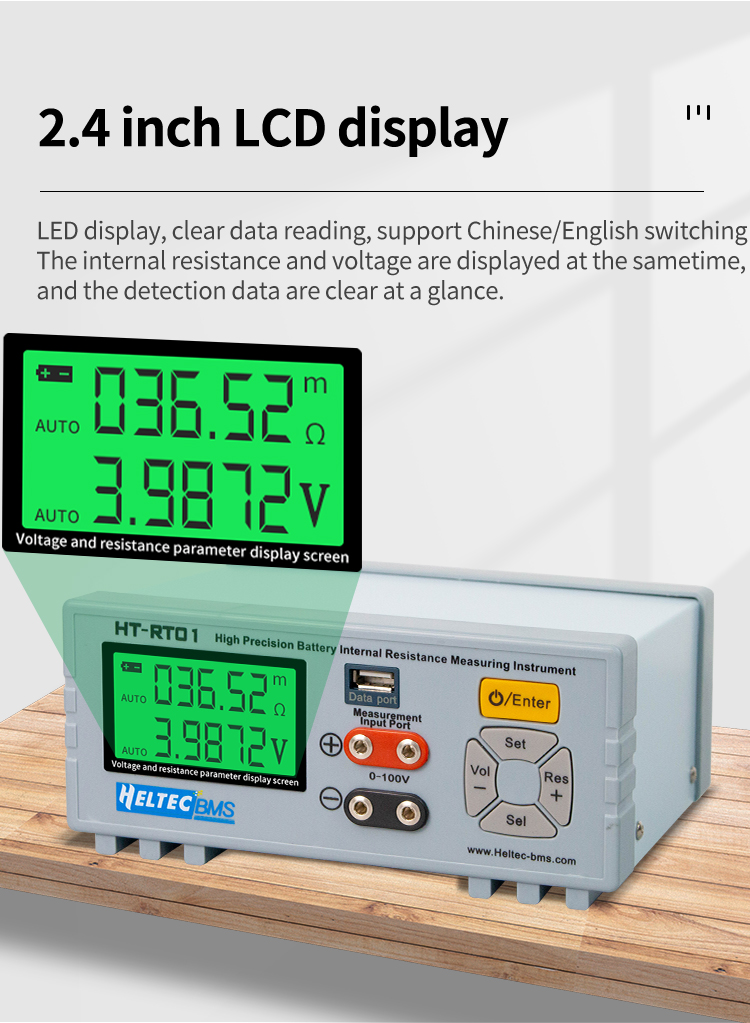

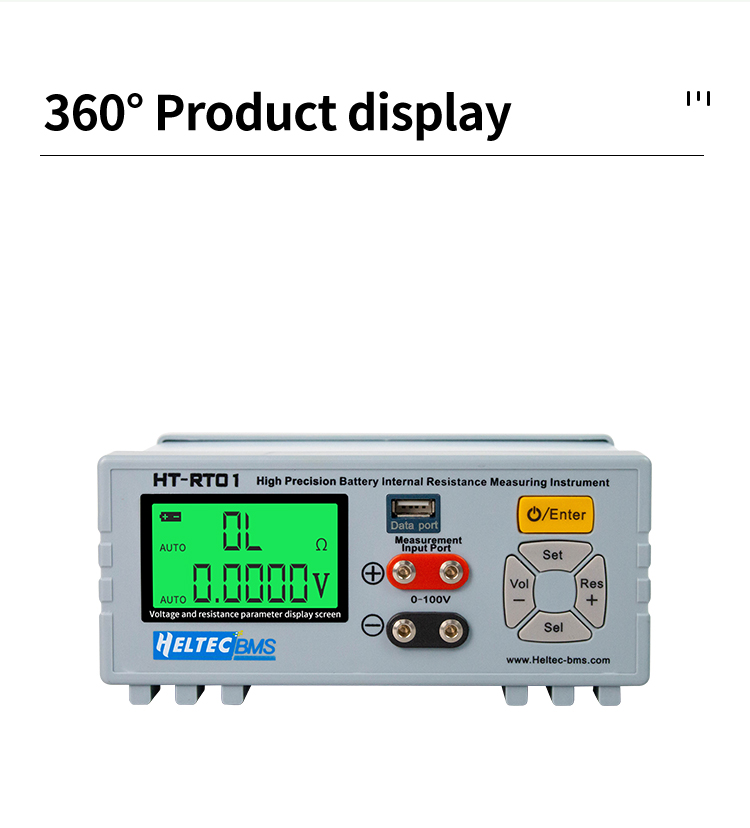

- Double 5-digit display, the highest resolution value of measurement is 0.1μΩ/0.1mv, Fine and high precision;
- Automatic multi-unit switching, covering a wide range of measurement needs;
- Automatic polarity judgment and display, no need to distinguish battery polarity;
- Balanced input Kelvin four-wire measuring probe, high anti-interference structure;
- 1KHZ AC current measurement method, high accuracy;
- Suitable for various battery/pack measurements below 100V;
- Equipped with computer serial connection terminal, expanded instrument measurement and analysis function.
Test Parameter Range
| Power Supply | AC110V/AC220V | Precision | R: ±0.5%; V: ±0.5% |
| Supply Current | 50mA~100mA | Test Pace | 5 times /S |
| Measurement Parameter | ① ACR② DCV | Range | Automatic Switch |
| Measuring range | R: 0~200ΩV: 0~±100VDC | Measuring Probes | LCR Kelvin 4-wire clamp |
Overview
1. This instrument adopts the high-performance single-crystal microcomputer chip imported from ST Microelectronics, combined with the American "Microchip" high-resolution A/D conversion chip as the measurement control core, and the precise 1.000KHZ AC positive current synthesized by the phase-locked loop is used as measurement signal source apply on the tested element. The generated weak voltage drop signal is processed by high- precision operational amplifier, and the corresponding internal resistance value is analyzed by intelligent digital filter. Finally, it is displayed on large screen dot matrix LCD.
2. The instrument has the advantages of high precision, automatic file selection, automatic polarity discrimination, fast measurement and wide measurement range.
3. The instrument can measure the voltage and internal resistance of the battery (pack) at the same time. Because of the Kelvin type four-wire test probe, it can better avoid the superimposed interference of the measurement contact resistance and wire resistance, realize the excellent anti-external interference performance, so as to obtain more accurate measurement results.
4. The instrument has the function of serial communication with PC, and can realize the numerical analysis of multiple measurements with the help of PC.
5. The instrument is suitable for accurate measurement of AC internal resistance of various battery packs (0 ~ 100V), especially for low internal resistance of high-capacity power batteries.
6. The instrument is suitable for battery pack research and development, production engineering, and battery screening in quality engineering.
Scope of Use
1. It can measure internal resistance and voltage of ternary lithium, lithium iron phosphate, lead acid, lithium ion, lithium polymer, alkaline, dry battery, nickel-metal hydride, nickel-cadmium, and button batteries, etc. Quickly screen and match all kinds of batteries and detect battery performance.
2. R&D and quality testing for manufacturers of lithium batteries, nickel batteries, polymer soft-pack lithium batteries and battery packs. Purchased batteries quality and maintenance testing for stores.
