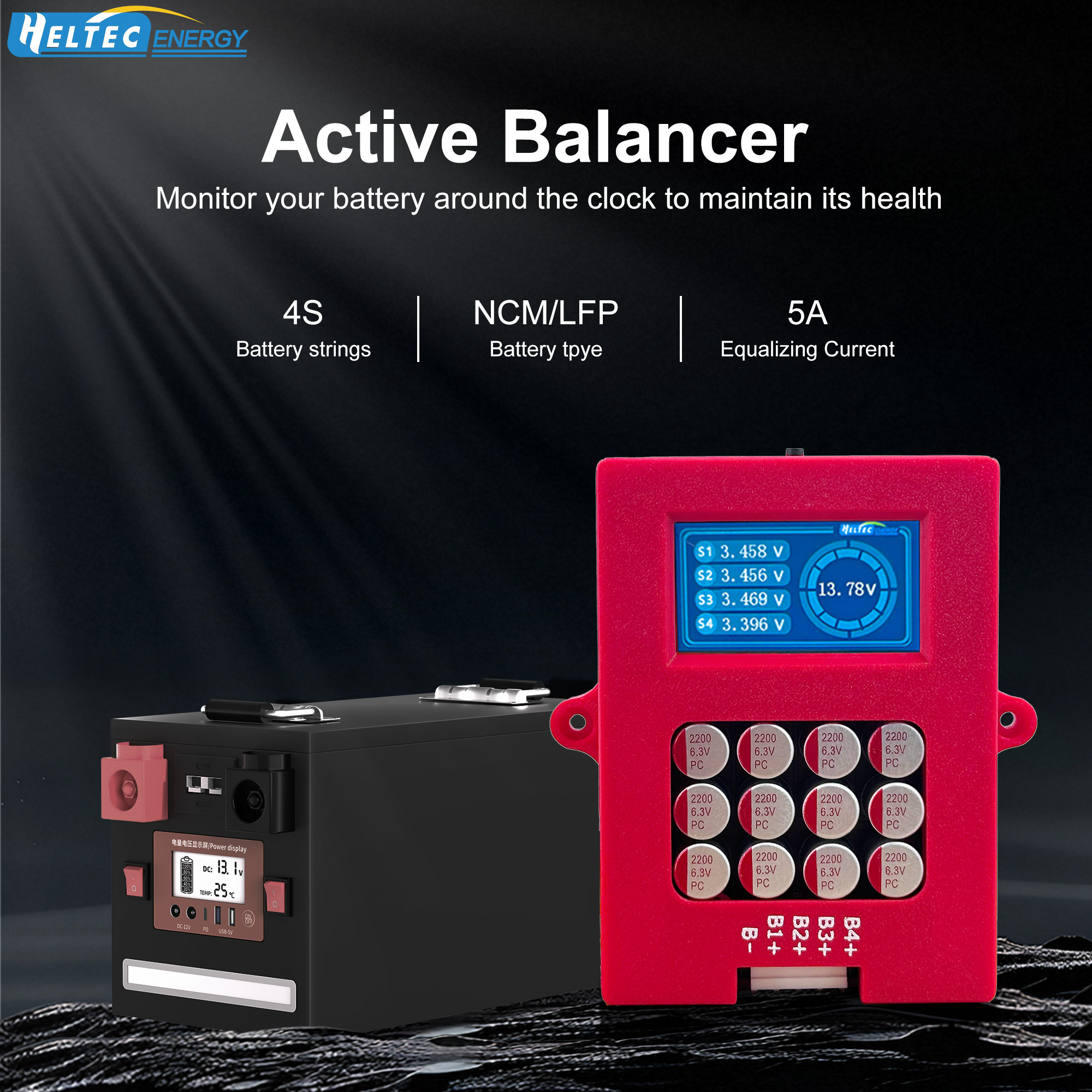

Active Balancer Lifepo4 4s 5A Capacitor Balancer with LCD Display

As the number of battery cycles increases, the rate of battery capacity decay is inconsistent, leading to a serious imbalance in battery voltage. The “battery barrel effect” will influence the service life of your battery. That’s why you need a active balancer for your battery packs.

Different from inductive balancer, capacitor balancer can achieve the whole group balance. It doesn’t need voltage difference between adjacent batteries to start balancing. After the device is activated, each battery voltage will reduce the capacity decay caused by the battery barrel effect and shorten the duration of the issue.

For more information, send us inquiry and get your free quote today!

Send email to us Online Store

Product Detail

Product Tags

Specifications:

DS0855 - 3-4S 5A Active Balancer with display & ABS case

(For more specifications, please contact us. )

Product Information

Brand Name:	Heltec Energy
Origin:	Mainland China
MOQ:	1 pc
Certification:	FCC
Base Material	PCB Board
Battery Type:	NCM/LFP/LTO
Warranty:	One Year
Balance current	MAX 5.5A
Working Environment Temperature	-10℃~60℃
Characteristic	High current energy transfer

Customization

Customized logo
Customized packaging
Graphic customization

Package

1. 5A active balancer *1set.

2. Anti-static bag, anti-static sponge and corrugated case.

3. TFT-LCD display (Optional).

heltec-active-balance-capacitive-battery-equalizer-with-acrylic-protective-case

Purchase Details

Shipping From:
1. Company/Factory in China
2. Warehouses in United States/Poland/Russia/Brazil/Spain
Contact Us to negotiate shipping details
Payment: 100% TT is recommended
Returns & Refunds: Eligible for returns and refunds

Features:

All group balance
Max balance current 5.5A
Capacitive energy transfer
Fast speed, not hot

heltec-active-balancer-3A-capacitive-equalization-1

Active-Balancer-Lithium-Battery-Balancer-Active-Balancer-Lifepo4-4s-wholesale (4)

Parameters

Working voltage: 2.7V-4.5V.

Suitable for ternary lithium, lithium iron phosphate, lithium titanate.

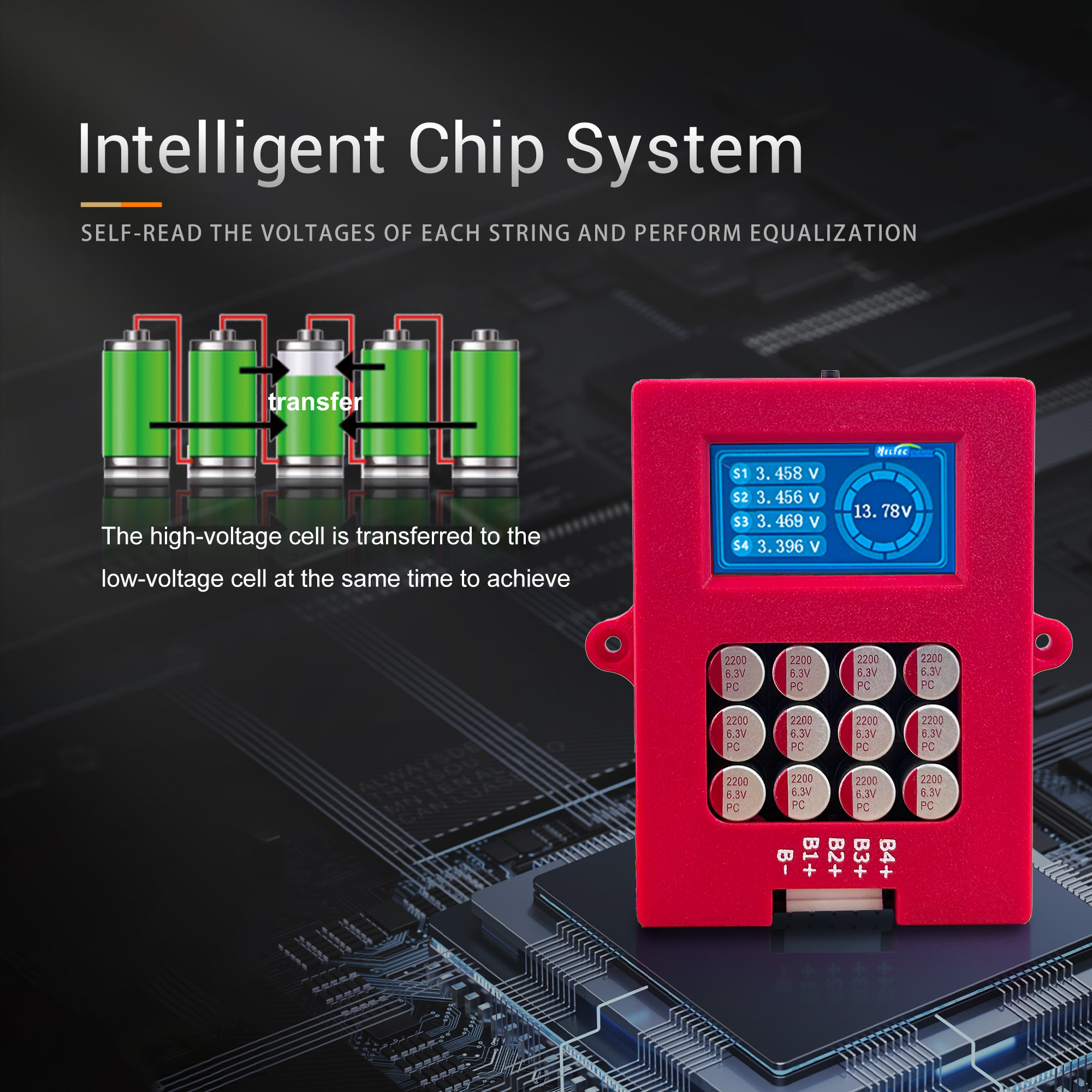

Working principle, the capacitor fit transfers the charge mover. Connected the balancer to the battery, and the balancing will started. The original new ultra-low internal resistance MOS, 2OZ copper thickness PCB.

Max Balancing current 5.5A, the more balanced the battery, the smaller the current, with manual sleep switch, sleep current mode is less than 0.1mA, the balance voltage accuracy is within 5mv.

With under-voltage sleep protection, the voltage will stop automatically when the voltage is lower than 3.0V, and the standby power consumption is less than 0.1mA.
