Hardware BMS
6S 7S BMS System Lithium Battery 18650 BMS 24V
Specifications:
● 6S 30A 3.7V Same Port
● 6S 60A 3.7V Same Port
● 6S 80A 3.7V Same Port
● 6S 120A 3.7V Same Port
● 6S 150A 3.7V Same Port
● 6S 200A 3.7V Same Port
● 6S 350A 3.7V Same Port
● 6S 80A 3.7V Split Port
● 6S 150A 3.7V Split Port
● 7S 30A 3.7V Same Port
● 7S 60A 3.7V Same Port

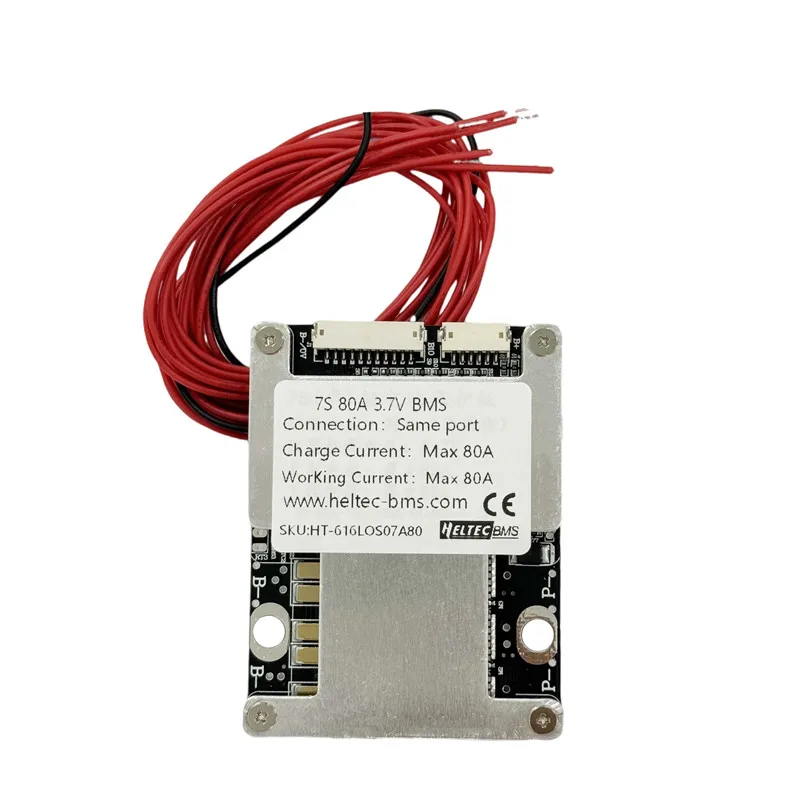

● 7S 80A 3.7V Same Port
● 7S 120A 3.7V Same Port
● 7S 150A 3.7V Same Port
● 7S 200A 3.7V Same Port
● 7S 350A 3.7V Same Port
● 7S 80A 3.7V Split Port
● 7S 150A 3.7V Split Port
Product Information
| Brand Name: | HeltecBMS |
| Material: | PCB board |
| Certification: | CE |
| Origin: | Mainland China |
| Warranty: | One year |
| MOQ: | 1 pc |
| Battery Type: | NCM |
| Balance type: | Passive balancing |
Customization
- Customized logo
- Customized packaging
- Graphic customization
Package
1. Hardware BMS *1 set.
2. Anti-static bag, anti-static sponge and corrugated case.
Purchase Details
- Shipping From:
1. Company/Factory in China
2. Warehouses in United States/Poland/Russia/Brazil
Contact Us to negotiate shipping details - Payment: 100% TT is recommended
- Returns & Refunds: Eligible for returns and refunds
Parameters:
● Charging protection voltage: 4.25V
● Discharge protection voltage: 2.7V
● Charge release voltage: 4.15V
● Discharge recovery voltage: 3.0V
● Balance voltage: 4.18V
● Balance current: 83mA
● Current limit protection: 110A
● Size: 63*48*8mm
● Charging protection voltage: 4.25V
● Discharge protection voltage: 2.7V
● Charge release voltage: 4.15V
● Discharge recovery voltage: 3.0V
● Balanced voltage: 4.18V
● Balance current: 83mA
● Current limit protection: 220A
● Size: 63*48*14mm
● Charging protection voltage: 4.25V
● Discharge protection voltage: 2.7V
● Charge protection release voltage: 4.15V
● Discharge release voltage :3.0V
● Balance voltage: 4.18V
● Balance current: 83mA
● Maximum continuous overcurrent: 120A
● Current limit protection: 600A
● Size: 115*66*8mm
● Charging protection voltage: 4.25V
● Discharge protection voltage: 2.7V
● Charge protection release voltage: 4.15V
● Discharge release voltage: 3.0V
● Balance voltage: 4.18V
● Balance current: 83mA
● Maximum continuous overcurrent: 120A
● Current limit protection: 600A
● Size: 115*66*14mm
● Charging protection voltage: 4.25V
● Discharge protection voltage: 2.7V
● Charge protection release voltage: 4.15V
● Discharge release voltage: 3.0V
● Balance voltage: 4.18V
● Balance current: 83mA
● Maximum continuous overcurrent: 120A
● Current limit protection: 600A
● Size: 115*66*14mm
● Charging protection voltage: 4.25V
● Discharge protection voltage: 2.7V
● Charge protection release voltage: 4.15V
● Discharge release voltage: 3.0V
● Balance voltage: 4.18V
● Balance current: 83mA
● Maximum continuous overcurrent: 200A
● Current limit protection: 750A
● Size: 115*66*14mm
● Charge protection voltage: 4.28V
● Discharge protection voltage: 2.8V
● Charge protection release voltage: 4.08V
● Discharge release voltage: 3.0V
● Balanced voltage: 4.17V
● Balanced current: 83mA
● Maximum continuous overcurrent: 350A
● Current limit protection: 1500A
● Size: 163*82*14mm
● Charge protection voltage: 4.28V
● Discharge protection voltage: 2.8V
● Charge protection release voltage: 4.08V
● Discharge release voltage: 3.0V
● Balanced voltage: 4.17V
● Balanced current: 83mA
● Maximum continuous overcurrent: 80A
● Current limit protection: 200A
● Size: 83*55*8mm
● Charge protection voltage: 4.28V
● Discharge protection voltage: 2.8V
● Charge protection release voltage: 4.08V
● Discharge release voltage: 3.0V
● Balanced voltage: 4.17V
● Balanced current: 83mA
● Maximum continuous overcurrent: 150A
● Current limit protection: 400A
● Size: 83*55*14mm
* We keep upgrading products to meet requirements of our clients, please contact our sales person for more accurate details.
