6 Channels Multi-function Battery Repair Instrument with Display Battery Tester Charge and Discharge Equalization

This multifunctional battery test and equalization instrument is designed for charge and discharge testing, equalization and maintenance of various batteries such as electric vehicle batteries, energy storage batteries, solar cells, etc. With a maximum charge of 6A and a maximum discharge of 10A, it allows the use of any battery within the voltage range of 7-23V. The uniqueness of this battery test and equalization instrument lies in its independent system and display screen for each channel. It allows users to directly use the instrument for detection, easily monitor battery health, evaluate performance indicators and accurately perform maintenance tasks through the display screen.

For more information, send us inquiry and get your free quote today!

Send email to us Online Store

Product Detail

Product Tags

Specifications:

HT-ED10AC6V20D (6 Channels with Display）Battery testing and maintenance equipment

(For more specifications, please contact us. )

Product Information

Brand Name：	Heltec Energy	Origin:	Mainland China
Warranty：	One year	MOQ:	1 pc
Number of channels	6	Input voltage:	220V
Charging voltage range:	7~23V adjustable, voltage 0.1V adjustable	Charging current range:	0.5 ~ 6 A adjustable, current 0.1A adjustable
Discharge voltage range:	2~20V adjustable, voltage 0.1V adjustable	Discharge current	0.5 ~ 10A adjustable, current 0.1A adjustable
Maximum number of charge and discharge cycles:	50 times	Current and voltage Adjustment mode:	knob adjustment
Single discharge maximum power:	138W	Single charge and discharge maximum timing:	90hours
Current accuracy	±00.03A / ±0.3%	Voltage accuracy	±00.03V / ±0.3%
Machine weight:	10KG	Machine size:	662816 cm
Application:	Charging and discharging test and maintenance of electric vehicle batteries, energy storage batteries, solar cells,

maintenance-battery-lithium-battery-equalizer-cell-capacity-tester (5)

maintenance-battery-lithium-battery-equalizer-cell-capacity-tester (1)

Customization

Customized logo
Customized packaging
Graphic customization

Package

1. multi-functional battery test and equalization instrument *1 set

2. Anti-static sponge, carton and wooden box.

Purchase Details

Shipping From:
1. Company/Factory in China
2. Warehouses in United States/Poland/Russia/Brazil/Spain
Contact Us to negotiate shipping details
Payment: TT is recommended
Returns & Refunds: Eligible for returns and refunds

Main Features:

1. Multi-Function Compatibility: This multi-functional battery test and equalization instrument is designed to work seamlessly with a variety of batteries, including electric vehicle batteries, energy storage batteries, and solar cells. Its voltage range is 7-23V and can accommodate a variety of battery configurations, making it an essential tool for professionals and amateurs alike.

2. Powerful Performance: With a maximum charging current of 6A and a maximum discharging current of 10A, our battery test and equalizer can handle demanding tasks with ease. This feature ensures that you can perform thorough testing and maintenance without impacting performance.

3. Independent Channel System: One of the outstanding features of our equipment is the independent system and display of each channel. This unique design allows users to conduct inspections directly with the instrument, providing real-time data and insight into the health and performance of each battery. No more guesswork - monitoring has never been easier!

4. User-Friendly Interface: Whether you're diagnosing a problem, performing a routine inspection, or performing a complex repair procedure, the intuitive display allows you to easily navigate functions. Clear visual indicators help you evaluate performance metrics at a glance, streamlining your workflow.

5. Improved Efficiency: Designed with the user's needs in mind, this instrument simplifies the testing and maintenance process, allowing you to focus on what matters most - keeping your battery in top condition. By providing accurate data and insights, it enables you to make informed decisions about battery care and management.

Mode Overview

Pattern coding	Function
0	Historical circular data query mode
1	Capacity test
2	Standard charging
3	Start with discharge and end of charge, 1-50 cycles
4	Start charging and end charging with 1-50 cycles
5	Start with discharge and end with 1-50 cycles
6	Start charging and end discharging, cycle times 1-50
7	Networking mode
8	Pulse Repair Mode
9	Charge → Pulse Repair → Discharge → Charge

Usage Method

Connect the machine to the 220V power supply and turn on the corresponding power switch. Then,you will hear a "ticking"sound and see the LCD screen light up. Then enter the instrument into the correct chain to receive the test battery (red clip to the positive battery,black clip to the negative battery), and the LCD screen will display the current battery voltage.

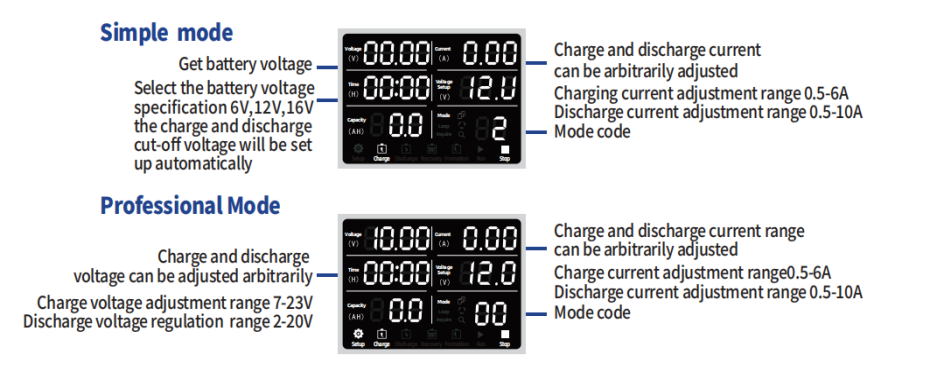

Simple mode and professional mode switching method

The default setting interface mode is simple when the instrument is powered on.The current battery is displayed in the voltage selection bar on the LCD screen,and battery selection options are provided in the simple mode.Just select the battery from 6V/12V/16V and charging current and discharge current.The rest discharge parameters are automatically set according to the battery characteristics.The simple mode is good for beginner users who do not know much about the battery characteristics.

If you are a professional user, you can switch the operation mode to professional one when there is a higher demand.The switching method is: In the stopped state, press the "set" knob for 3 seconds and then release. After hearing the long "ticking" sound alarm, to the mode into professional one. In the professional mode, the battery charging voltage, charging current, discharge voltage, discharge current can be arbitrarily set.
