20V Battery Charge/Discharge Capacity Tester Nl-MH/Lithium/Lead Acid Battery Equalizer Maintain Old Batteries

Heltec 20V capacity test and equalization instrument is suitable for lithium battery, Nickel Metal Hydride, Nickel Cadmium Battery, Alkaline Battery, lithium Iron phosphate battery, lead-acid batteries. It provides the versatility and power you need to test and balance your batteries effectively. This means you can maximize the lifespan of your battery packs while ensuring they operate at peak efficiency.

The battery capacity test and equalization instrument series detection function can be realized,and the battery capacity can be measured in the series battery pack,and the channels are independent and do not affect each other. The intelligent balancing feature ensures that each cell within your battery pack is charged evenly, preventing issues that can arise from imbalances, such as reduced capacity and shorter lifespan.

Send email to us Online Store

Product Detail

Product Tags

Specifications:

HT-ED10AC8V20 (8 channels 10A) Battery Charge/Discharge Test & Equalization Instrument

(For more specifications, please contact us. )

Product Information

Brand Name:	Heltec Energy
Origin:	Mainland China
Warranty:	One year
MOQ:	1 pc
Battery Type:	lithium battery, Nickel Metal Hydride, Nickel Cadmium Battery, Alkaline Battery, lithium Iron phosphate battery, lead-acid batteries and other battery.
Channels:	8 channels
Charge/Discharge current:	10A
Application:	Used for battery equalization and capacity (charge & discharge) test.

Nl-MH-battery-lithium-battery-lead-acid-battery-Battery-capacity-tester-battery-equalizer (6)

maintenance-battery-lithium-battery-equalizer-cell-capacity-tester (4)

Product Parameters Per Channel and Environmental Requirements

Input power	AC200V～245V @50HZ/60HZ 50A
Standby power	80W
Full load power	2400W
Allowable temperature and humidity	Ambient temperature <35 degrees;Humidity <90%
Number of channels	8 Channels
Inter-channel voltage resistance	AC1000V/2min without exception
Maximum charging current	10A
Maximum discharge current	10A
Maximum output voltage	20V
Minimum voltage	1V
Measurement voltage accuracy	±0.02V
Measuring current accuracy	±0.02A
Applicable systems and configurations of the upper computer software	Windows XP or above systems with network port configuration.

Customization

Customized logo
Customized packaging
Graphic customization

Package

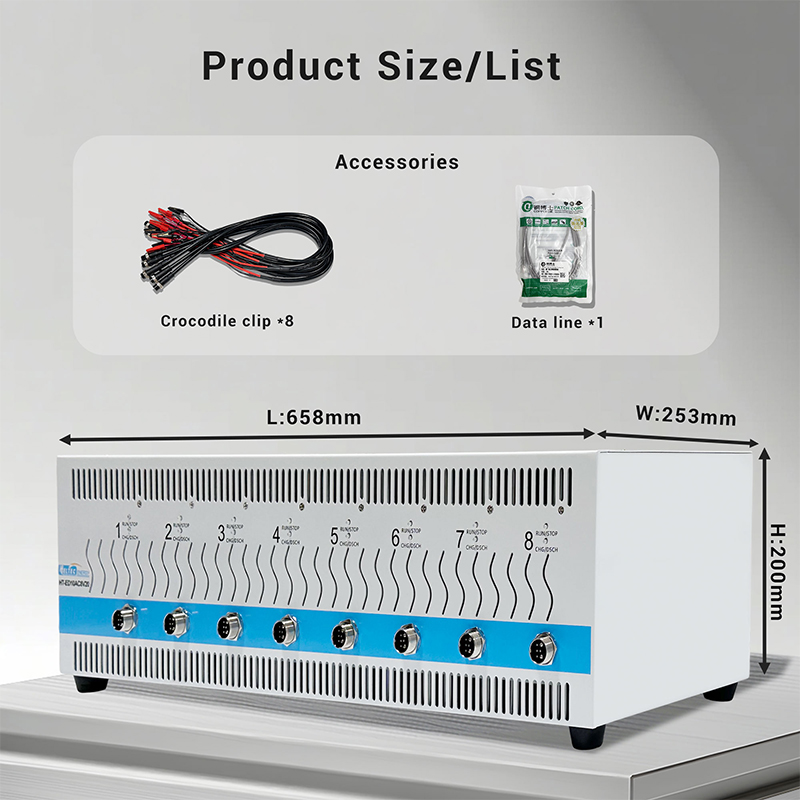

1. Lithium Battery Charge/Discharge & Equalization Repair Instrument *1set

2. Anti-static sponge, carton and wooden box.

Purchase Details

Shipping From:
1. Company/Factory in China
2. Warehouses in United States/Poland/Russia/Brazil/Spain
Contact Us to negotiate shipping details
Payment: TT is recommended
Returns & Refunds: Eligible for returns and refunds

Features

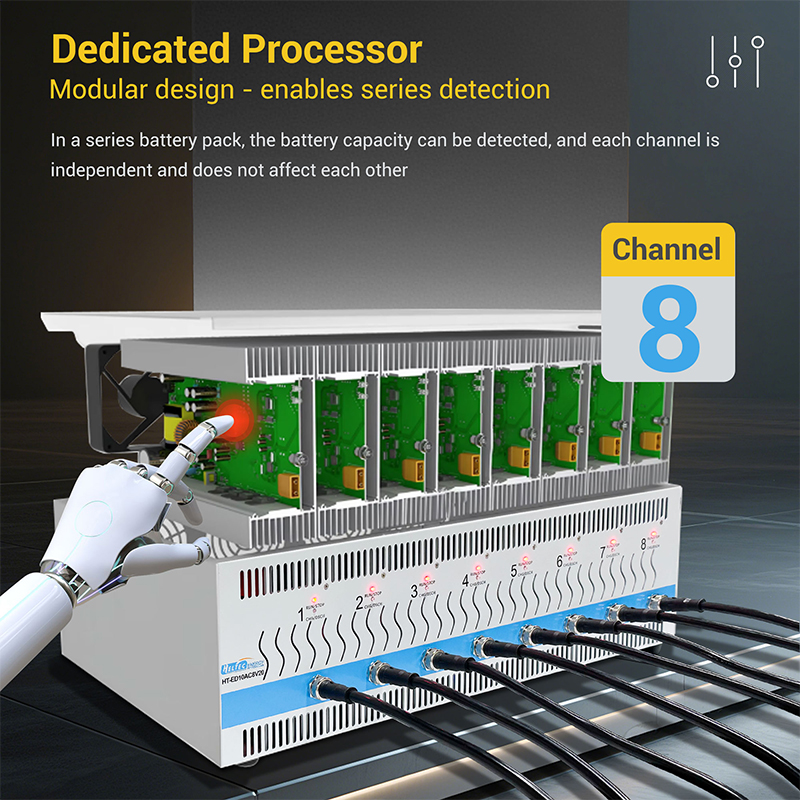

Each channel is equipped with a dedicated processor to ensure that the capacity calculation, timing, voltage and current control are at a perfect level.
Full channel isolation test, can directly test the battery cells of the entire battery pack.
Single channel 20V/5A charging and discharging power
Fully compatible with lithium iron phosphate, ternary lithium, lithium cobalt oxide, nickel metal hydride, nickel cadmium, lead acid and other types of batteries
18650, 26650, soft pack batteries, block batteries and other physical specifications of batteries are fully compatible and installed.

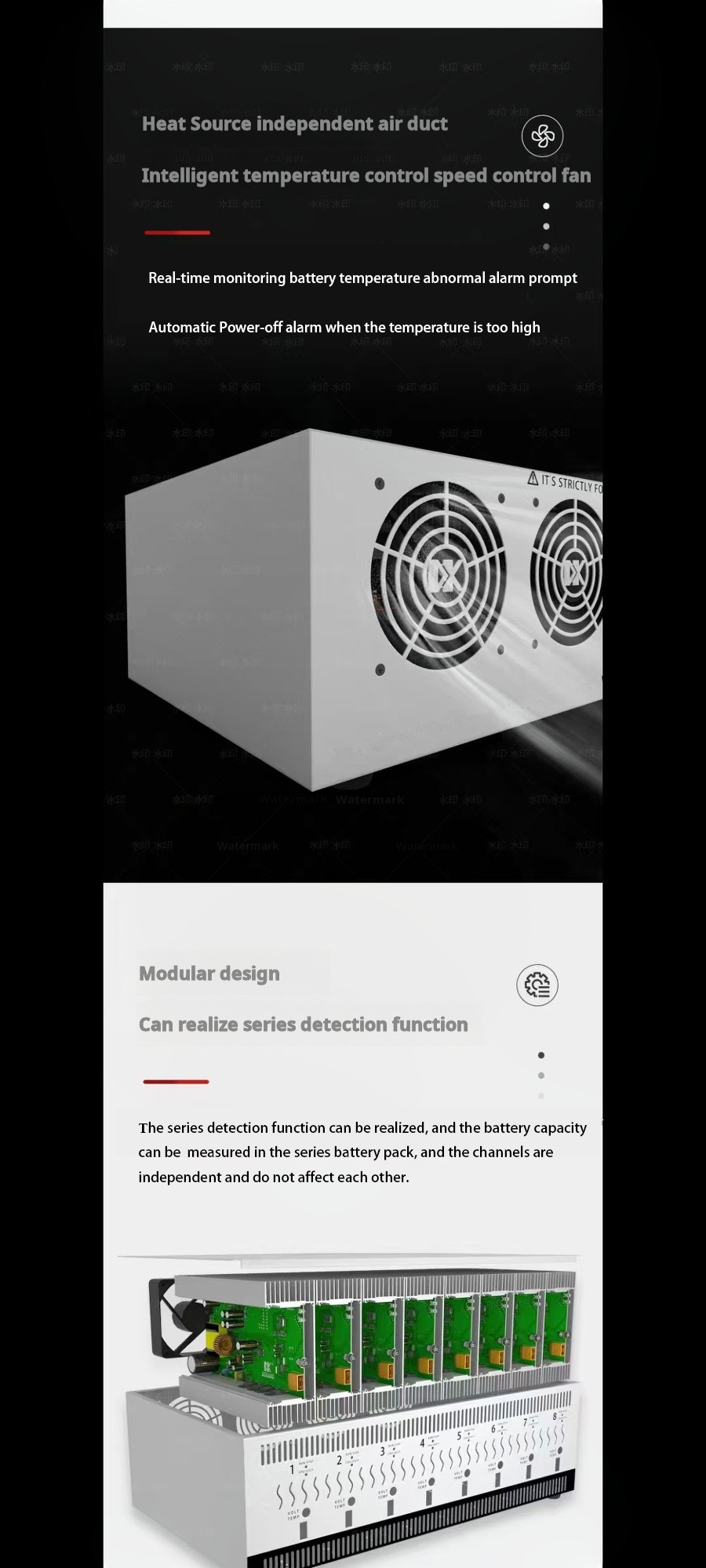

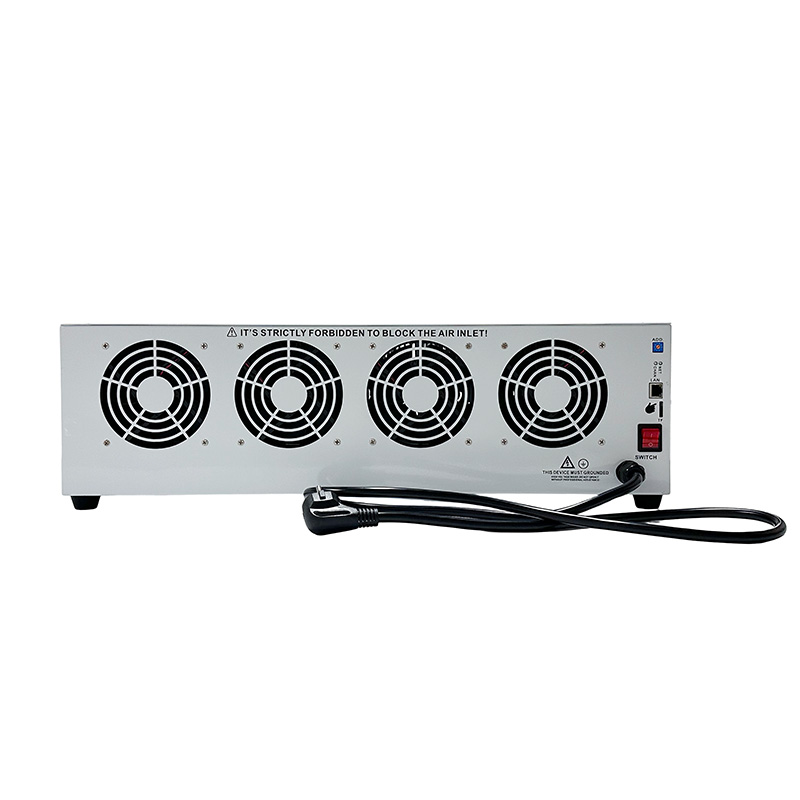

Independent heat source air duct, temperature-controlled speed-adjustable fan;
Battery test probe height is adjustable, and the scale scale is convenient for leveling;
Running detection status, grouping status, alarm status LED indication.
Computer online equipment testing, test settings and results are detailed and rich.
With CC constant current discharge, CP constant power discharge, CR constant resistance discharge, CC constant current charging, CV constant voltage charging, CCCV constant current constant voltage charging, shelving and other test steps available for call
Customizable charging or discharging parameters; such as charging voltage;
With step jump capability
Can realize group matching function, test results are grouped according to custom standards, and marked and displayed on the device;
With test process data recording function;
With 3 Y axes (voltage, current, capacity) and a time axis curve drawing ability, and also with data report function;
Test status pane color customization, when the number of tests is large, it is easy to visually check the detection status of all devices.
